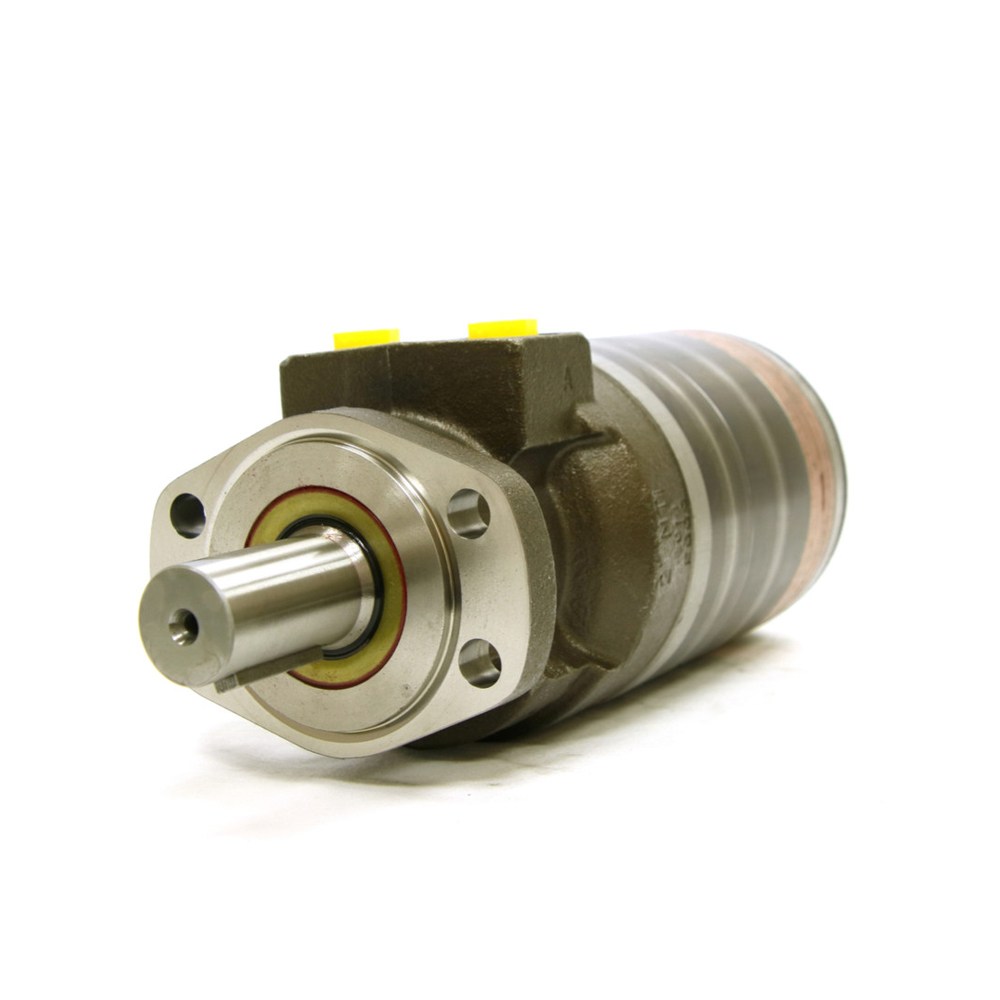

Model: TH Series Motor

Shaft Diameter: 1.50 inch Nominal (other sizes available)

Maximum Operating Speed: 118 to 660 RPM at Intermittent Flow

Maximum Flow Rate: 95 to 115 L/min Intermittent (76 Continuous), 25 to 30 gal/min Intermittent (20 Continuous)

Maximum Output Torque: 530 to 1428 Nm Intermittent (390 to 1044 Continuous), 4692 to 12636 lb-inch Intermittent (3455 to 9239 Continuous)

Minimum Starting Torque: 418 to 1341 Nm Intermittent (315 to 991 Continuous), 3706 to 11876 lb-inch Intermittent (2791 to 8772 Continuous)

Catalog: TH SERIES MOTOR
