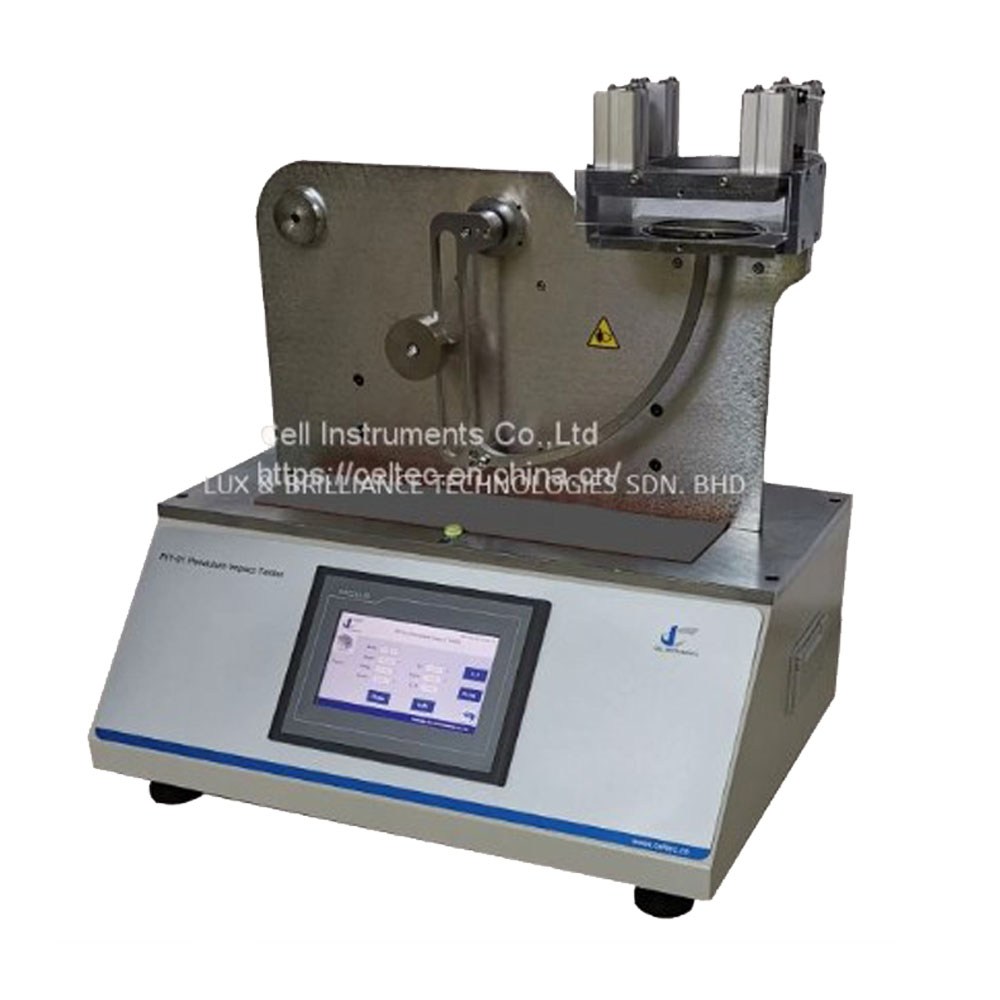

Pendulum Impact Tester is to measure the energy to burst and penetrate the center of a specimen, which is determined by loss in mechanical work capacity due to the expenditure of kinetic energy by a pendulum. The test gives a quantitative measurement of impact resistance properties of pendulum of films, sheets, composites, foils, paper and other materials.

Features
PLC control and HMI touch screen operation
Pneumatic specimen clamping and pendulum automatic release
Data auto statistics, storage
Precious angle measurement
Support customized Microprinter
RS232 port and software (Optional)

Specificatioon

Impact Energy : 1 J, 2 J, 3 J (could be modified)
Resolution : 0.001 J
Impact Head Size : Ф25.4 mm, Ф19 mm, Ф12.7 mm (Customization available)
Specimen Clamp Diameter : Ф89 mm, Ф60 mm
Specimen Size : 100 mm x 100 mm or Ф100 mm
Gas Supply Pressure : 0.6 MPa
Port Size :  Ф6 mm
Power Supply : AC 110~220V 50/60 Hz

Standards

ASTM D3420, NF T54-116, GB 8809
