This project involved the custom fabrication of a flange and mounting plate for an industrial vibration motor. The mounting assembly was designed to match the vibration motor’s base dimensions and the required installation position on the existing machinery or supporting structure.

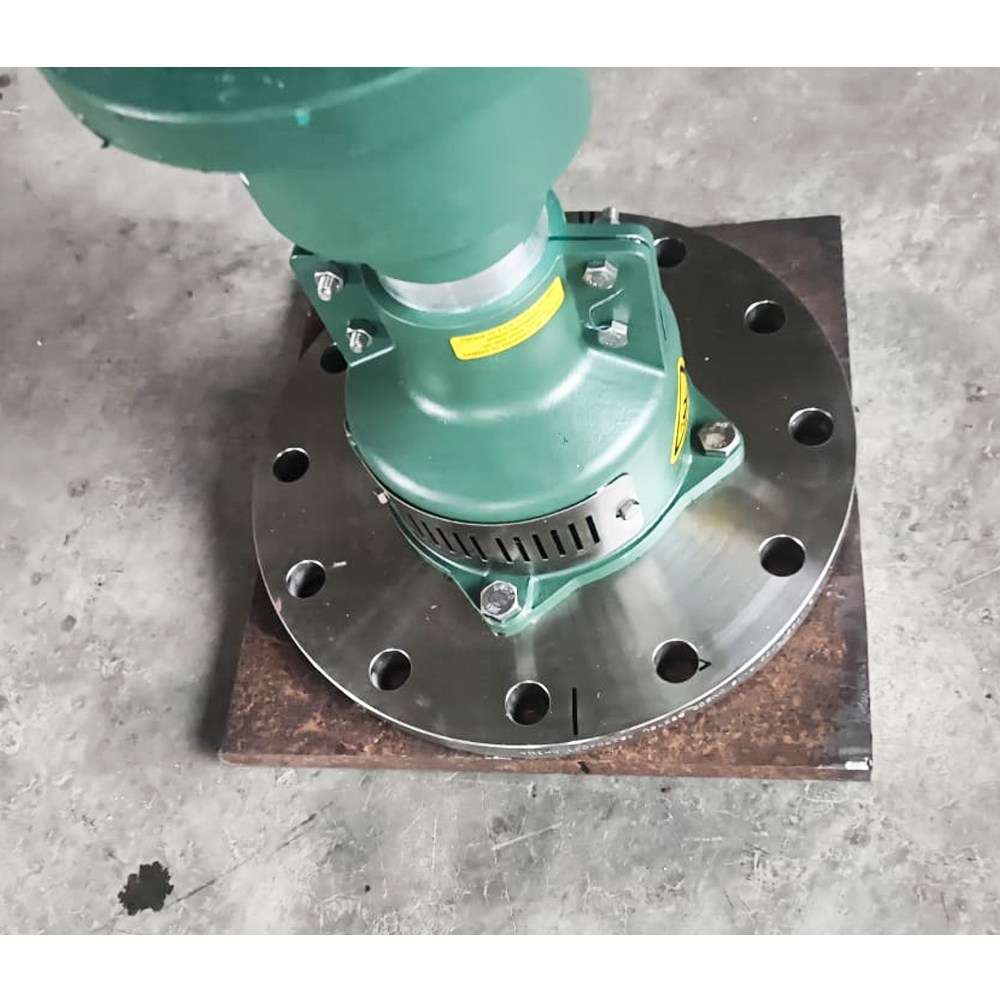

The circular flange plate was accurately prepared with multiple bolt holes to provide flexible alignment and secure fastening. A reinforced steel base plate was also incorporated to improve mounting stability and distribute vibration forces across a wider surface area during operation.

Custom vibration motor mounting solutions are commonly required when the original equipment mounting dimensions do not match the replacement motor, when additional reinforcement is needed, or when a vibration motor must be installed on a hopper, vibrating table, feeder, chute, screening machine or other material-handling equipment.

Our scope of work can include:

- Site measurement and mounting assessment
- Custom flange and base-plate fabrication
- Bolt-hole drilling and alignment
- Steel cutting, welding and machining
- Vibration motor trial fitting
- Mounting modification and reinforcement
- Surface preparation and protective coating
- On-site installation and adjustment

Each mounting plate can be customised according to the motor frame size, bolt-hole pattern, equipment structure, operating load and installation requirements. Proper alignment and secure mounting are important for stable vibration performance, reduced movement and long-term equipment reliability.

We provide custom vibration motor mounting base, flange plate and industrial metal fabrication services for factories, processing plants, material-handling systems and machinery installations across Klang Valley and surrounding areas.

Need a custom mounting plate or flange for your vibration motor or industrial equipment? Contact our team for measurement, fabrication and quotation.
