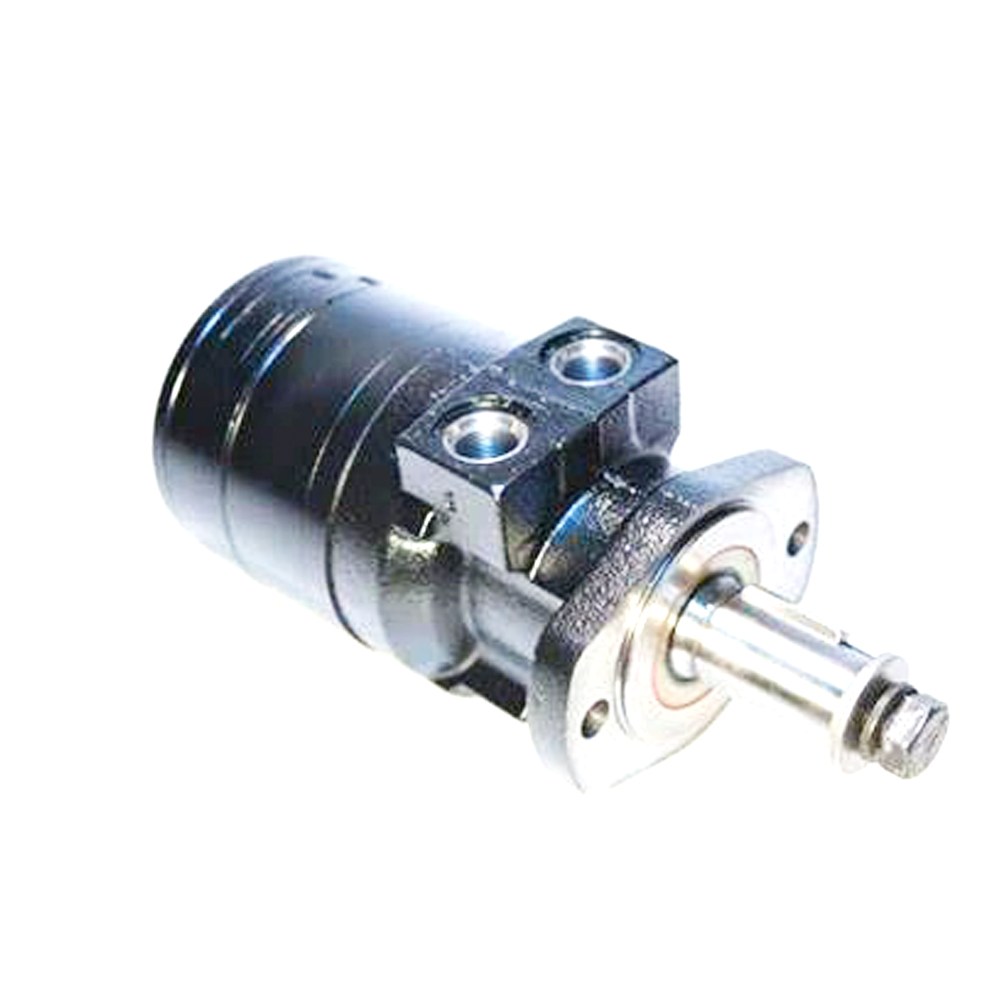

Model: TG Series Motor

• Shaft Diameter: 1.25 inch Nominal (other sizes available)
• Maximum Operating Speed: 118 to 660 RPM at Intermittent Flow
• Maximum Flow Rate: 95 to 114 L/min Intermittent (76 Continuous), 25 to 30 gal/min Intermittent (20 Continuous)
• Maximum Output Torque: 530 to 1268 Nm Intermittent (390 to 773 Continuous), 4692 to 11227 lb-inch Intermittent (3455 to 6843 Continuous)
• Minimum Starting Torque: 418 to 1177 Nm Intermittent (315 to 763 Continuous), 3706 to 10419 lb-inch Intermittent (2791 to 6752 Continuous)
