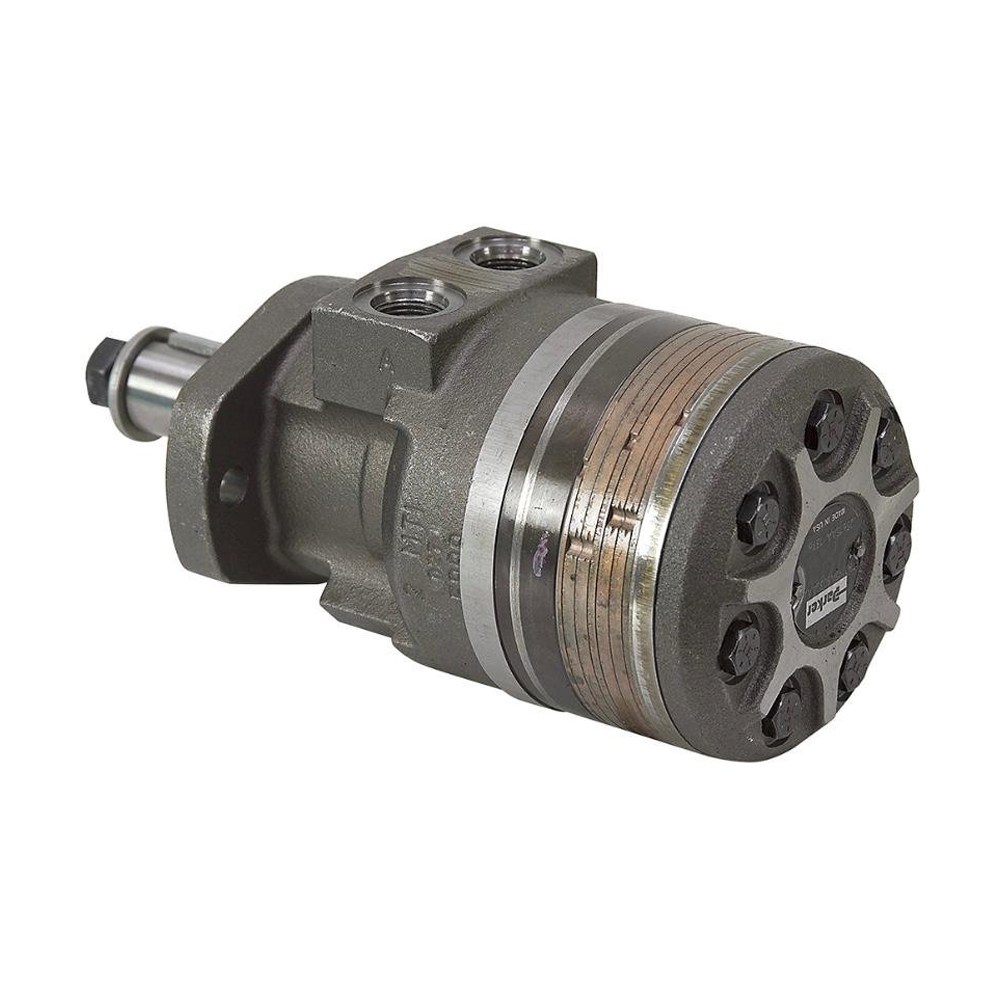

Model: TF Series Motor

• Shaft Diameter: 1.25 inch Nominal (other sizes available)
• Maximum Operating Speed: 195 to 749 RPM at Intermittent Flow
• Maximum Flow Rate: 57 to 95 L/min Intermittent (46 to 76 Continuous), 15 to 25 gal/min Intermittent (12 to 20 Continuous)
• Maximum Output Torque: 296 to 851 Nm Intermittent (220 to 681 Continuous), 2621 to 7528 lb-inch Intermittent (1948 to 6027 Continuous)
• Minimum Starting Torque: 205 to 740 Nm Intermittent (158 to 603 Continuous), 1811 to 6548 lb-inch Intermittent (1401 to 5334 Continuous)
